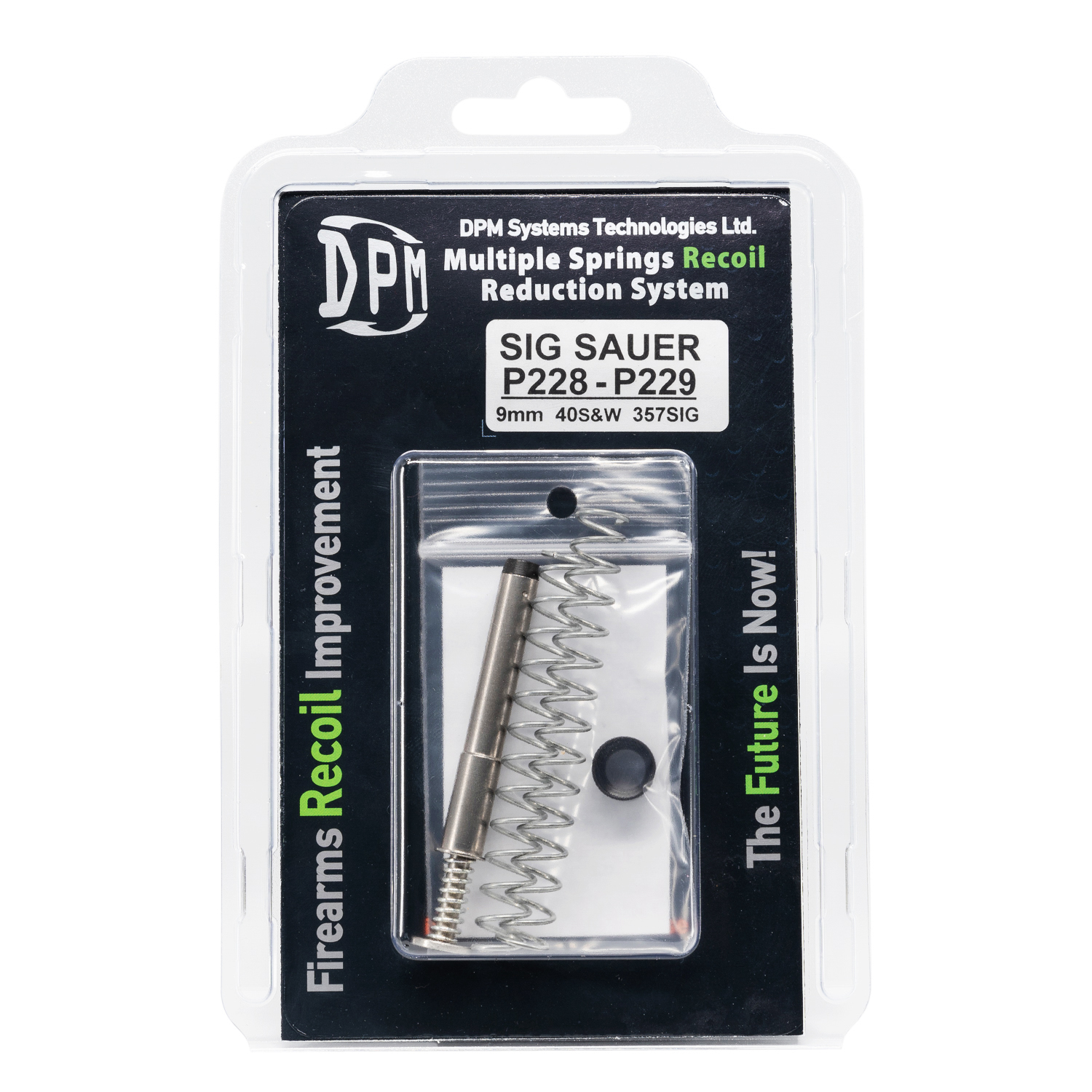

Sig Sauer P228 & P229 Recoil Reduction Spring Rod by DPM Systems
Frequently Bought Together
+
+
About the Sig Sauer P228 & P229 Recoil Reduction Spring Rod by DPM Systems:
Will Fit: Sig Sauer P228 & P229 9mm, .40s&w, .357 sig
Sig Sauer P228 & P229 Recoil Spring Assembly Instructions
The DPM P228 & P229 Recoil Reduction Spring Rod by DPM Systems replaces the original factory guide rod/spring system and produces an advanced recoil reduction by absorbing the shock gradually and slowing the slide down before its impact with the frame of the pistol. Because the system is an interior modification of your pistol it will not change the external dimensions of the handgun, therefore there is no for a new holster, sights or any other accessory you own.

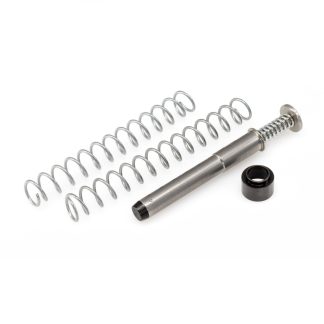

The DPM Sig Sauer P228 & P229 recoil spring system works due to its multi spring rod design (three springs) by producing an advanced recoil reduction technique by gradually slowing the slide down before impacting the frame of the pistol using Spring No. 1 (see fig. below) and Spring No. 2. The third spring (Spring No. 3) which is contained within the rod itself controls the movement of the slide so it never rams on the frame.
DPM Mechanical Recoil Reduction System for SIG P228 & P229
The DPM Mechanical Recoil Reduction System is a direct replacement for the stock recoil rod and does not change the configuration of the pistol.
The spring plug must always be installed when the DPM Recoil Rod and springs are used.
**As we lead the evolution of recoil reduction technology, products may change versions (new design with different springs, with or without plugs, washers, etc.) without any prior notice.**
Power Rates
Slide on the battery (idle position)
- Short Spring: 6.2lbs
- Long Spring: 7lbs
Total force (slide full open position): 22lbs (approx.)
Overall Advantages
- Faster follow up shots
- Improved firing speed
- Slide and Frame Protection
- Elimination of jams
- Significant recoil reduction
- Better double-tap concentration
- Better control and greater accuracy
*Dimensions of the spring are the same as the original.
COMPATIBILITY
Sig Sauer P228
DIMESIONS
Weight
60 g
Width
- in
Height
- in
Length
- in
Additional information
| Weight | 60 g |
|---|---|
| Dimensions | - × - × - in |
| For Gun Make | |
| For Gun Model | |
| Caliber | |
| Manufacturer | |
| Country of Manufacture | |
| Material | Cadmium Coated Hi Carbon (Springs), TI-6AL-4V Titanium Alloy |
